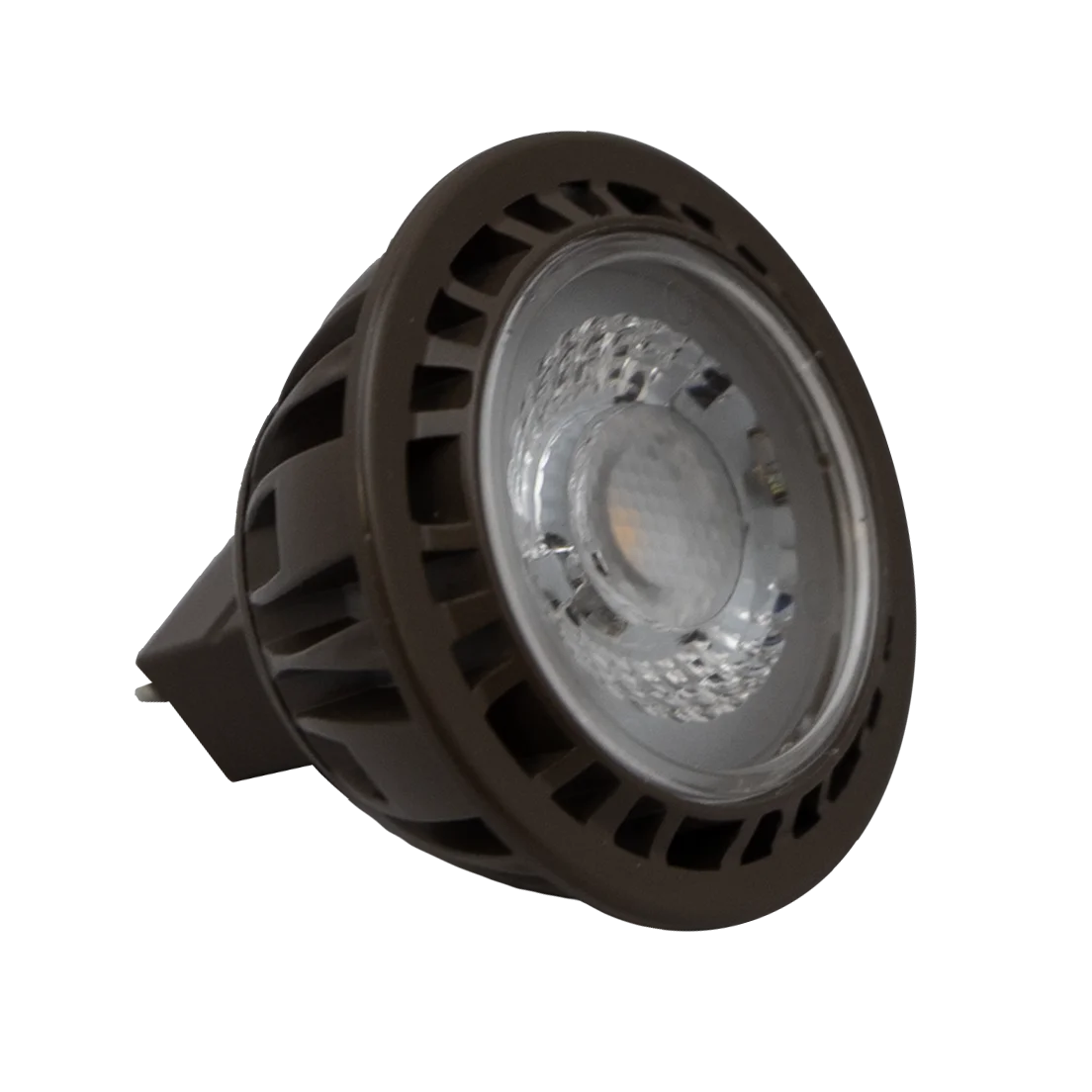

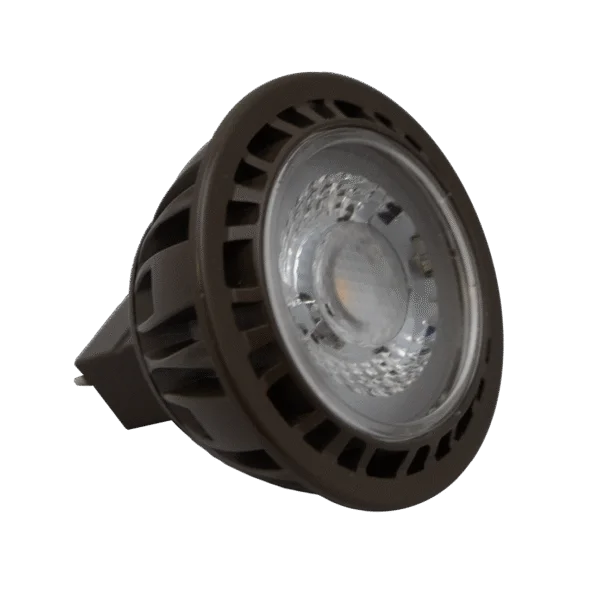

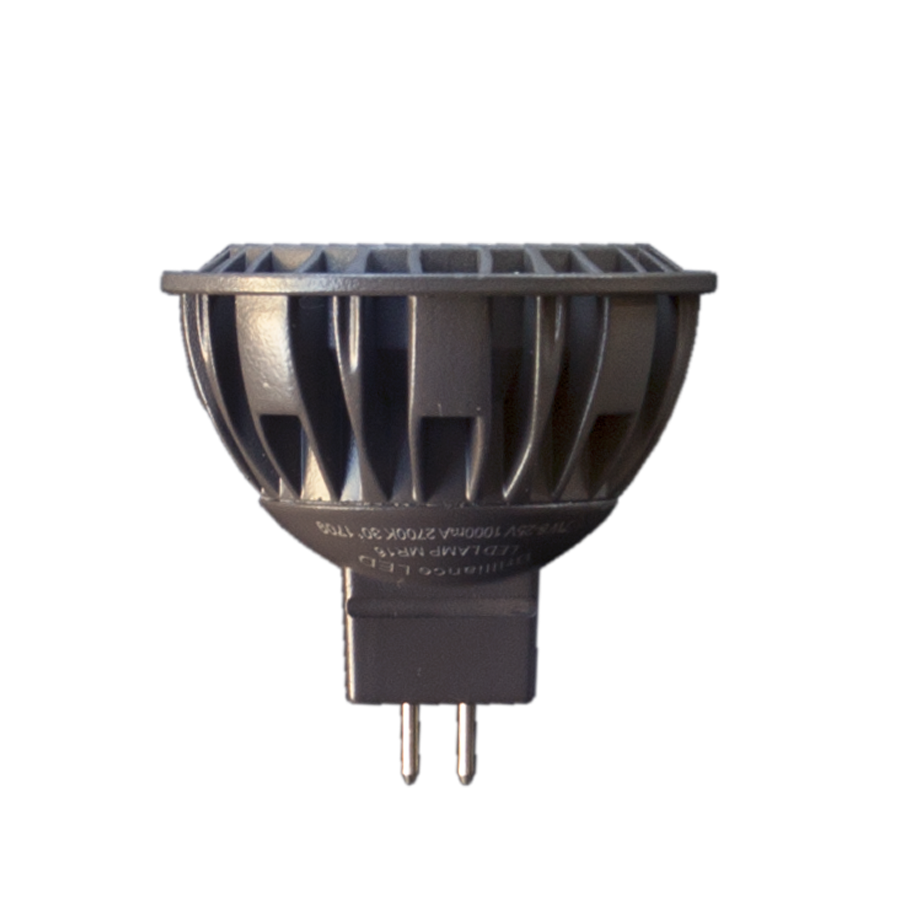

The Brilliance LED MR-16 LED lamp has been redesigned to better fit into standard, low voltage, MR-16 fixtures. These LED’s are thermally engineered to operate in enclosed fixtures and provides added security by automatically cooling down (and reducing lumens output) only when exposed to extreme heat (air temperatures above 125◦F). In addition, there is no color shift when lumens output is reduced, and the overall lamp life is improved.


  • Dimmable with most magnetic transformer

  • Enhanced ESD (Electro-Static Discharge) Protection (IEC-61000-4-2)

  • Heat Overload Protection Technology

  • Fully potted PC board

  • UL & FCC compliant



  • Wattage: 4, 5, 7

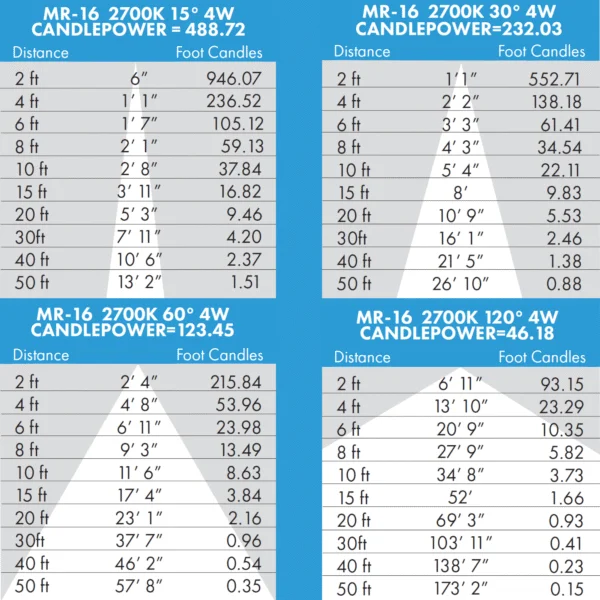

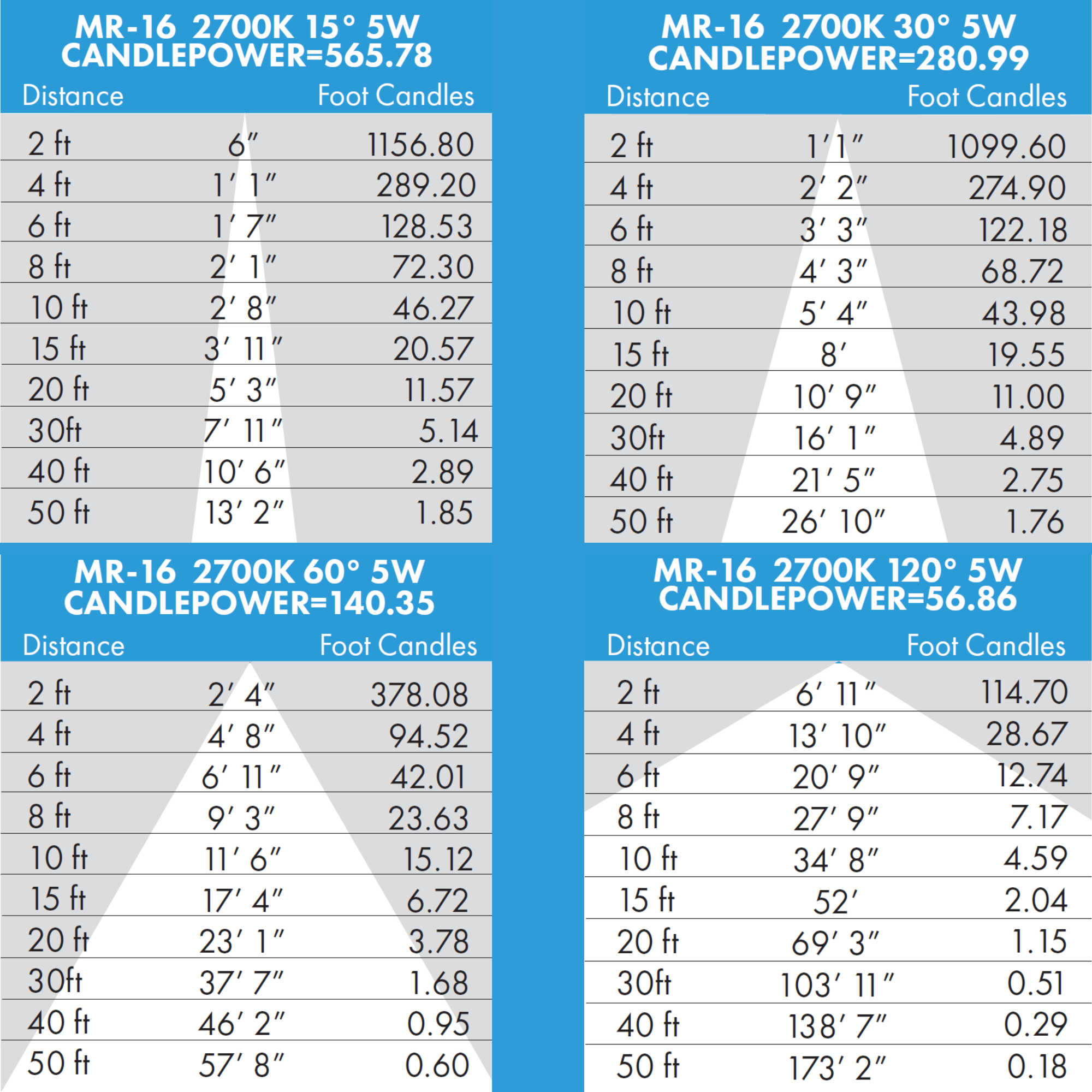

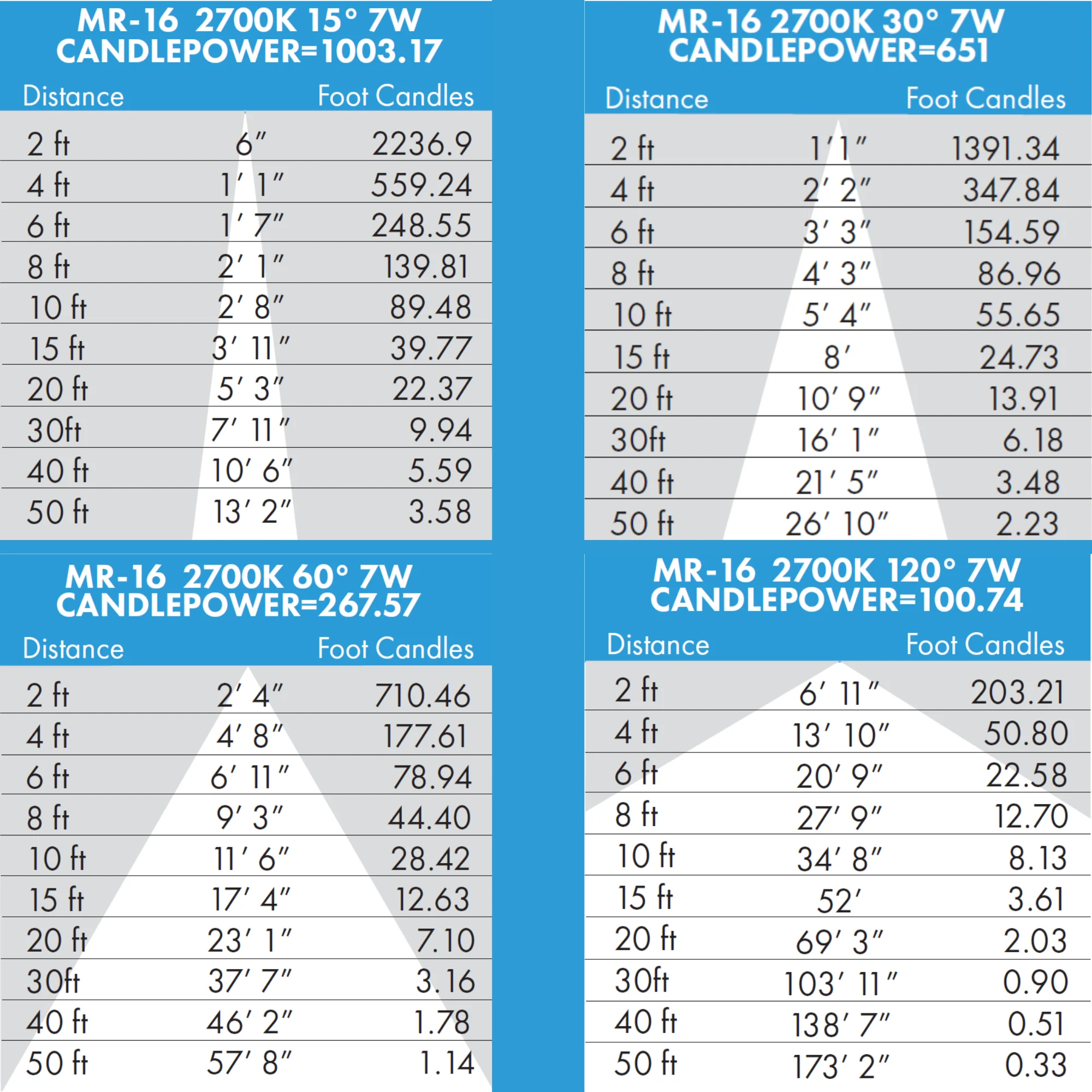

  • Beam Spread: 15º, 30º, 60º, 120º

  • Kelvin Temperature: 2200, 2700, 3000, 5700

  • Color: red, green, blue, amber(4W & 5W only), silvergreen (5W only)

  • Operating Range: 8-25V AC

  • Replaces: 20/35/50W Halogen

  • CRI: 85

  • IP: 61

  • Chpset: CREE

  • Lamp Life (hours): 50,000

  • Warranty (years): 5

**We are manufacturing the new GEN 5 lamps as our GEN 4 lamp stock depletes. This means that the new generation of lamps will become available on a product by product, wattage by wattage, kelvin temperature by kelvin temperature, and beam angle by beam angle basis.**
