MR-11

DESCRIPTION:

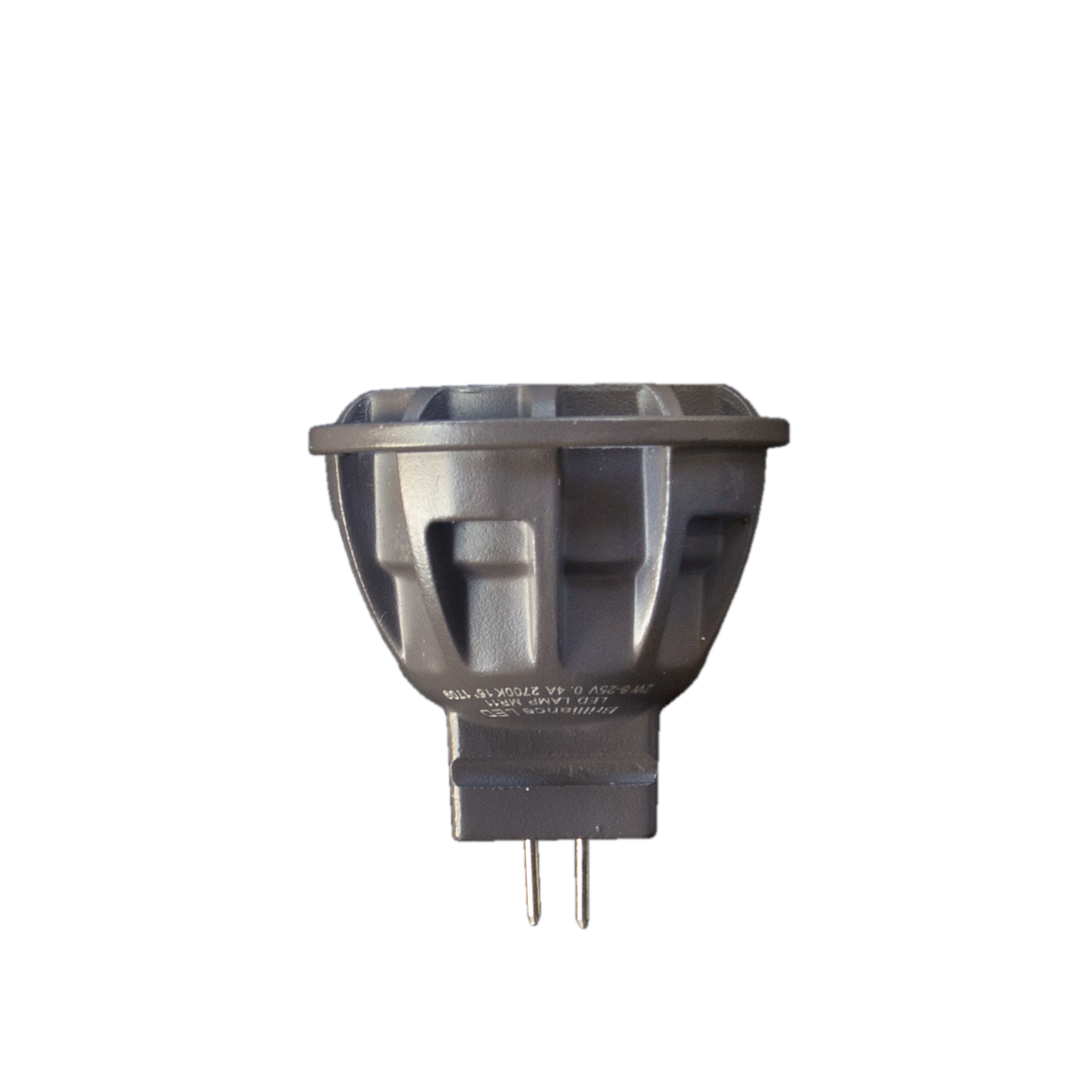

The Brilliance LED MR-11 LED lamp has been redesigned to better fit into standard, low voltage, MR-11 fixtures. These LED’s are thermally engineered to operate in enclosed fixtures and provide added security by automatically cooling down (and reducing lumens output) only when exposed to extreme heat (air temperatures above 125◦F). In addition, there is no color shift when lumens output is reduced, and the overall lamp life is improved.

FEATURES:

  • Max current: 2w 0.4a
  • Dimmable with most magnetic transformers
  • Enhanced ESD (Electro-Static Discharge) Protection (IEC-61000-4-2)
  • Heat Overload Protection Technology
  • Fully potted PC board
  • UL & FCC compliant

2
120
15º, 30º, 60º, 120º
2200, 2700, 3000, 5700
red, green, blue, amber
8-25V AC

20W Halogen
85
61
CREE
50,000
5

Wattage
Lumens
Bean Spread
Kelvin Temperature
Color
Operating Range
Replaces
CRI
IP
Chipset
Lamp Life (hours)
Warranty (years)
