AR-11

DESCRIPTION:

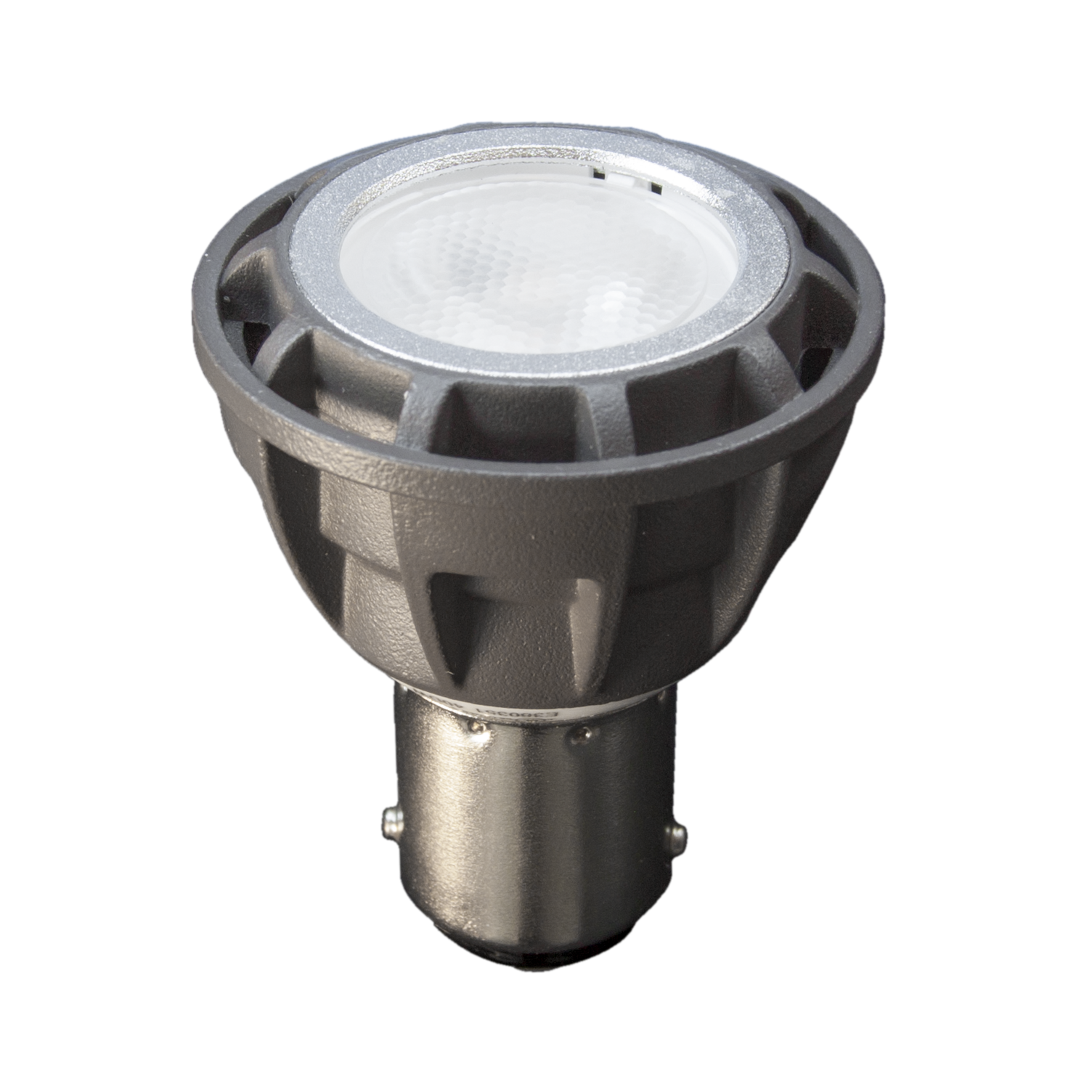

The Brilliance LED AR-11 Double Contact Bayonet has been redesigned to better fit into standard, low voltage, AR-11 fixtures. These LED’s are thermally engineered to operate in enclosed fixtures and provide added security by automatically cooling down (and reducing lumens output) only when exposed to extreme heat (air temperatures above 125◦F). In addition, there is no color shift when lumens output is reduced, and the overall lamp life is improved.

FEATURES:

  • Dimmable with most magnetic transformers
  • Enhanced ESD (Electro-Static Discharge) Protection (IEC-61000-4-2)
  • Heat Overload Protection Technology
  • Fully potted PC board
  • UL& FCC compliant

SPECIFICATIONS:

Wattage: 2
Lumens: 120
Beam Spread: 15º, 30º, 60º
Kelvin Temperature: 2200, 2700, 3000, 5700
Color" red, blue, green, amber
Operating Range: 8-25V AC
Replaces: 20W Halogen
CRI: 85
IP: 61
Chipset: CREE
Lamp Life (hours): 50,000
Warranty (years): 5
